Getting Started

Latest Android version: 5.0.1
Release date: 16-Mar 2020

This document details the process of integrating YouAppi Android MoPub adapter with your Android app.

If you have any questions, please, feel free to email us: support@youappi.com

The basic steps of integration are:

Download YouAppi’s Android SDK MoPub Adapter

Android MoPub adapter can be found in YouAppi Android SDK package as youappi-sdk-android-mopub.aar

Integration

Integrate using AAR files

  • Copy youappi-sdk-android-moat.aar and youappi-sdk-android-mopub.aar file to the apps/libs folder of your project.
  • Add the following to your project build.gradle file inside the repositories section:
    repositories {
        flatDir {
            dirs 'libs'
        }
    }
  • Add the following under dependencies section of app’s build.gradle (replace the ‘x.xx’ version field with the latest available version of the SDK):
    dependencies {
        implementation name:'youappi-sdk-android-mopub', ext:'aar'
        implementation name:'youappi-sdk-android-moat', ext:'aar'
    }

Integrate using repository

  • Add the following repository to your project build.gradle:
repositories {
    maven { url "http://repository.youappi.com/repository/release" }
}
  • Add the following dependency to your module build.gradle:
dependencies {
    implementation 'com.youappi.sdk:youappi-sdk-android-mopub-moat:4.3.10'
}

Proguard

If you use proguard in your application you should add these entries to your proguard file:

-keep class com.youappi.sdk.mediation.mopub.YouAPPiInterstitialAd{*;}
-keep class com.youappi.sdk.mediation.mopub.YouAPPiInterstitialVideo{*;}
-keep class com.youappi.sdk.mediation.mopub.YouAPPiRewardedVideo{*;}

Create YouAppi custom network

  • On MoPub platform on Networks tab, add a new custom network for YouAppi:

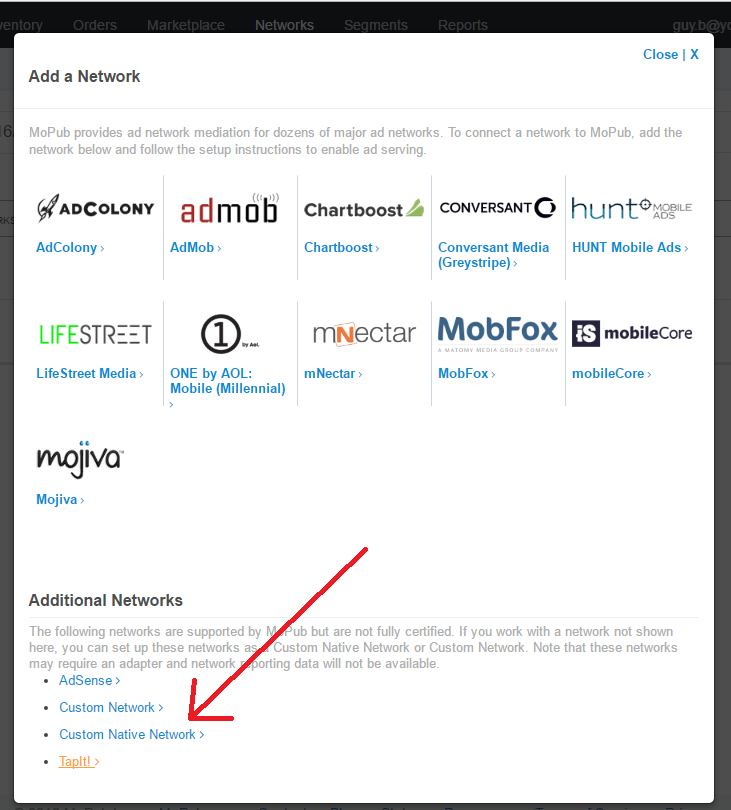

  • On the popup that opens choose to add a Custom Native Network.
  • Name your new network (YouAppi might be a good name) and fill other relevant details.

Setup MoPub for YouAppi Ad units

Create rewarded video ad anit

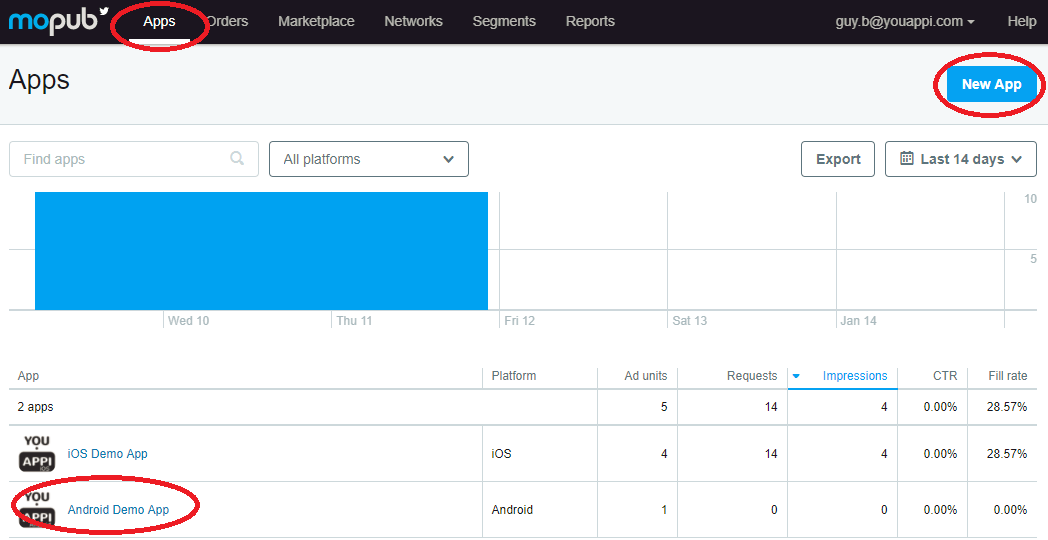

  • On your MoPub account, press Apps tab.
  • Select your Android app for which you would like or create the new ad unit or create a new Android app.On your app screen press “New ad unit” button:

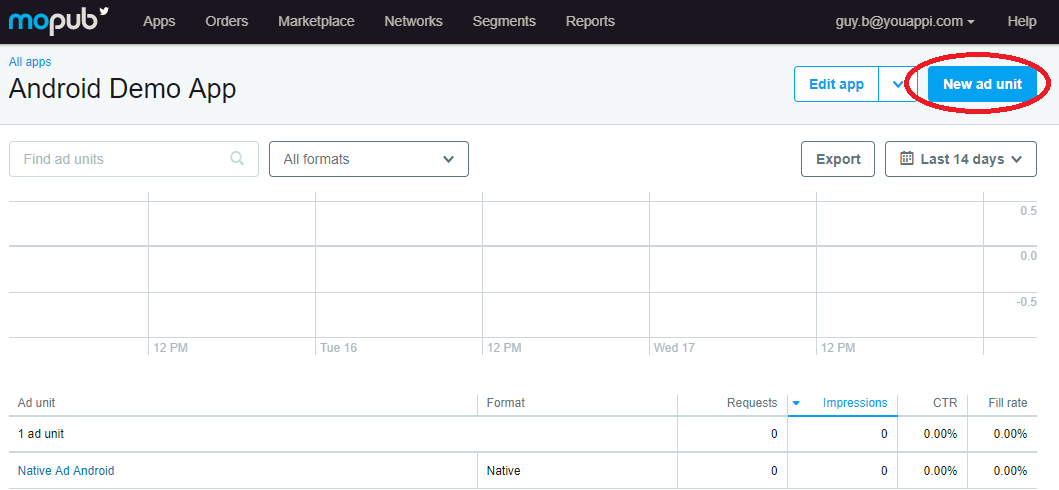

  • On your app screen press “New ad unit” button:

  • Name your add unit, select Format: Rewarded Video and press Save

Create Interstitial Video or Interstitial Ad units

  • Assuming you already created an Android app, press Apps tab and from the apps list choose your Android app.
  • Press New ad unit button to define a new ad unit for either Interstitial Video or Interstitial Ad.

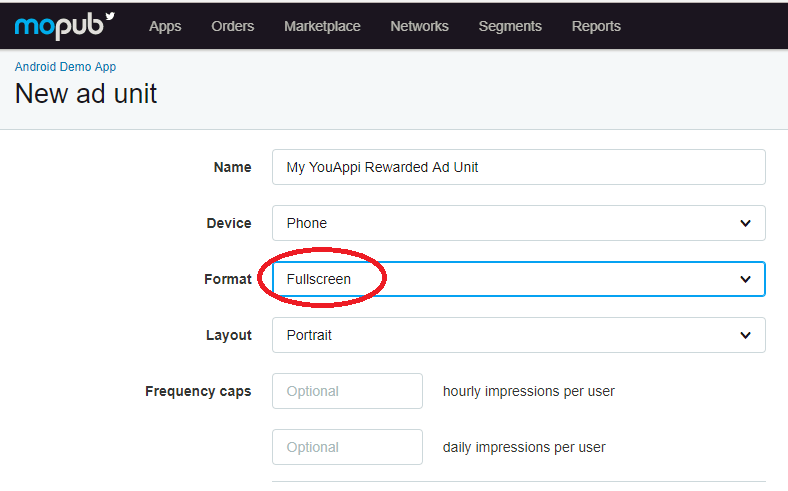

  • Name you ad unit, choose relevant device and on format choose Fullscreen:

Setup Ad Unit on network

  • Choose Networks and select your YouAppi custom network.
  • On network details screen choose Edit Network.
  • On Set Up Your Inventory section, connect between your Android app ad unit and YouAppi by setting the proper Custom Event Class.
  • For each ad unit type there is a different custom event class:
    • Rewarded Video: com.youappi.sdk.mediation.mopub.YouAppiRewardedVideo
    • Interstitial Video: com.youappi.sdk.mediation.mopub.YouAppiInterstitialVideo
    • Interstitial Ad: com.youappi.sdk.mediation.mopub.YouAppiInterstitialAd
  • On the custom event class data the following information should be supplied:
    • accessToken – the access token of the partner received from YouAppi.
    • adUnitId – an arbitrary id chosen the by app developer to identify the ad unit id. It should be by only numbers, letters and underscores.
  • Here is an example of how the custom event class data should look like:
    {
      "accessToken": "821cfa77-3127-42b5-9e6b-0afcecf77c67",
      "adUnitId": "testRewardedVideoAdUnitId"
    }

Enable YouAppi ad unit to run on YouAppi custom network

  • Press Segments tab and choose your desired segment.
  • Under your Android app find your desired ad unit and YouAppi custom network.

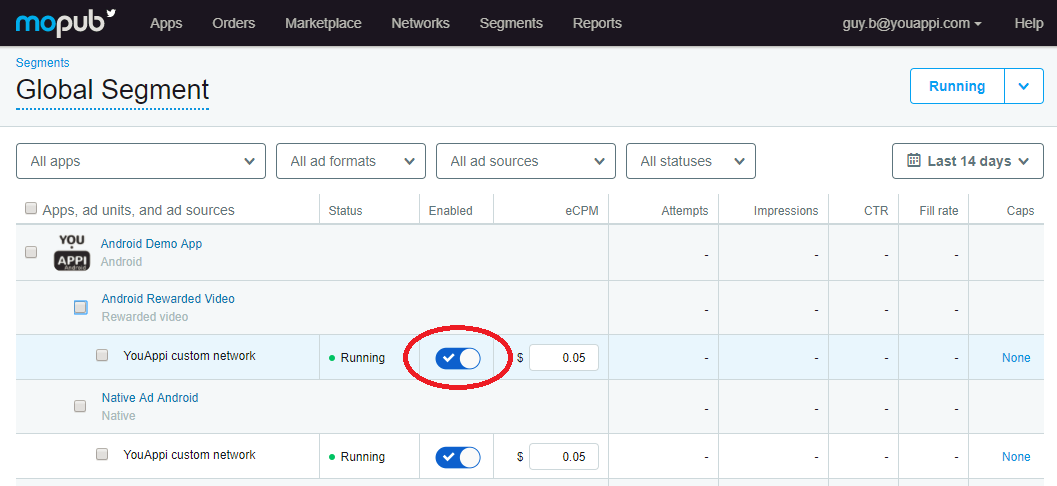

  • Switch your network to running by pressing the button under Enabled column:

Use MoPub SDK to show YouAppi ad units

Rewarded Video

Load

SdkConfiguration sdkConfiguration = new SdkConfiguration.Builder("<Replace with MoPub Rewarded Video Ad Unit ID>").build();
MoPub.initializeSdk(this, sdkConfiguration, this);
MoPubRewardedVideos.loadRewardedVideo("<Replace with MoPub Rewarded Video Ad Unit ID>");

Show

MoPubRewardedVideos.showRewardedVideo("<Replace with MoPub Rewarded Video Ad Unit ID>");

Interstitial Video

Load

MoPubInterstitial moPubInterstitialVideo = new MoPubInterstitial(this, "<Replace with MoPub Interstitial Video Ad Unit ID>");
moPubInterstitialVideo.load();

Show

moPubInterstitialVideo.show();

Interstitial Ad

Load

MoPubInterstitial moPubInterstitialAd = new MoPubInterstitial(this, "<Replace with MoPub Interstitial Ad Unit ID>");
moPubInterstitialAd.load();

 Show

moPubInterstitial.show();

Demo App

A demo app showing a simple usage of the SDK can be found in the following Github repository:

https://github.com/YouAppi/youappi-sdk-android-demo

The demo app contains 4 modules:

  • app-demo – Shows how to use YouAppi’s SDK
  • app-demo-admob – Shows how to use YouAppi’s SDK with AdMob adapter
  • app-demo-mopub – Shows how to use YouAppi’s SDK with MoPub adapter
  • app-demo-nativeads – Shows how to use YouAppi’s SDK Native Ads

Please make sure to read the README.md file for further instructions.
